Niek's BMW Explorer ZU-FXE

Postby KFA » Mon Jun 09, 2014 8:50 pm

Niek Behr built this Explorer in his garage. We are doing the final commission for him. BMW GS 1200 engine, IVO CS prop.
Attachments

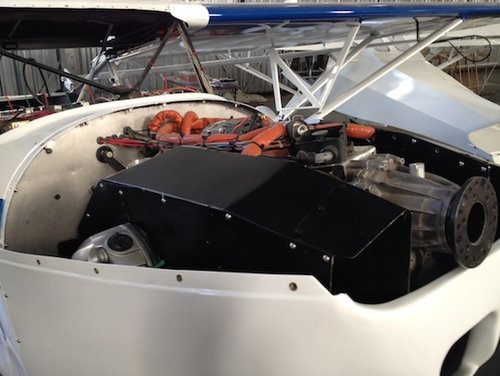

Engine and ducts.jpg
Return lines small.jpg

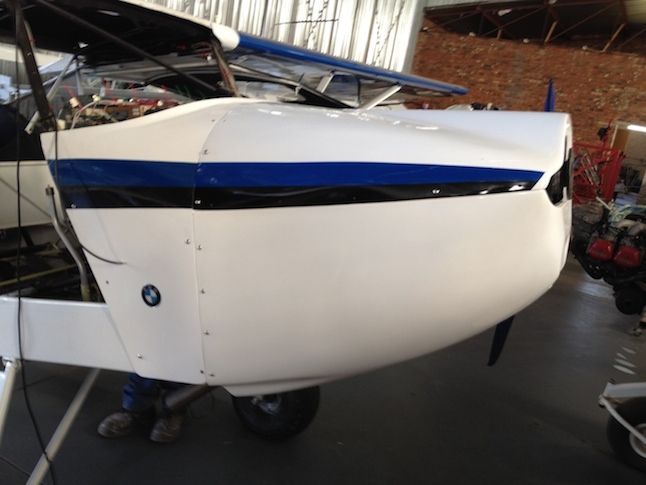

cowls copy.jpg
Last edited by KFA on Mon Sep 15, 2014 9:40 pm, edited 1 time in total.
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
User avatar
Jandebeer
Pre flight checks done
Posts: 35
Joined: Fri Mar 01, 2013 9:07 am

Re: Niek's BMW Explorer

Postby Jandebeer » Wed Jun 25, 2014 12:51 pm

What gearbox did he fit to the BMW
Jan de Beer | ZS-VWL | ZU-ADR
Crosswinds
Proud member of The Chain Gang
viewtopic.php?f=1&t=18311
http://www.facebook.com/groups/574736389205283/
User avatar
nicow
The Big Four K
The Big Four K
Posts: 4884
Joined: Tue May 24, 2005 7:09 am
Location: Potgietersrus
Contact:

Re: Niek's BMW Explorer

Postby nicow » Wed Jun 25, 2014 2:50 pm

Wow,Ek soek ook een.
Nico
Limpopo Flight School
vliegskool@hotmail.com
ZU-AWA
ZU-DMM
ZU-AJO
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2770
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:

Re: Niek's BMW Explorer

Postby KFA » Wed Jun 25, 2014 6:40 pm

The Gearbox is fro Take Off in Germany. Custom made for the BM motors.

All is done. Did some high power runs this afternoon. Getting 6900 at WOT. I will set the pitch a bit coarser. 6500 will probably be Ok for the first flight.
Now for the final paper push.
Attachments

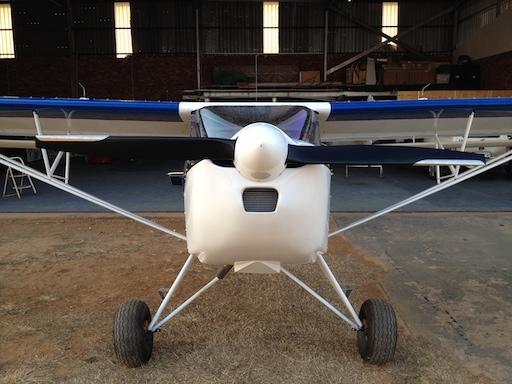

All done.jpg

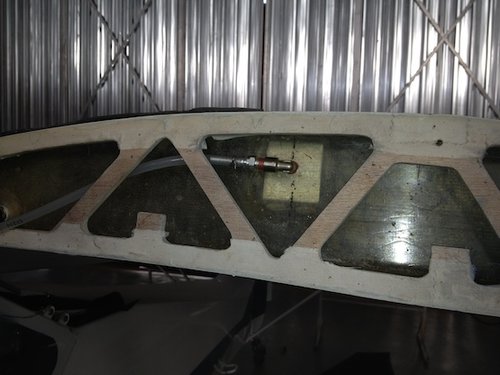

VG's on.jpg
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2770
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:

Re: Niek's BMW Explorer

Postby KFA » Wed Jun 25, 2014 6:49 pm

Some more
Attachments

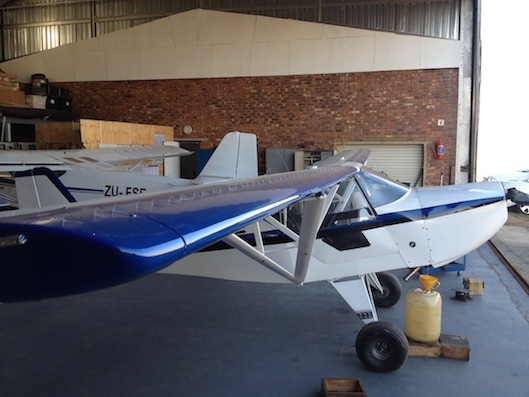

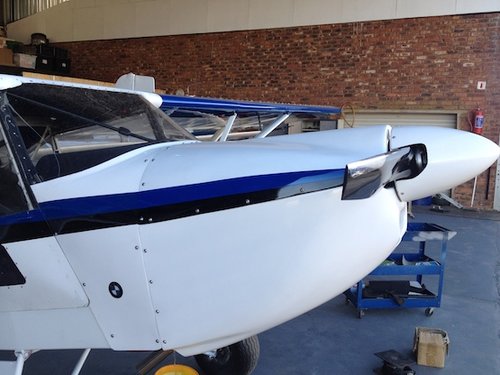

Up close.jpg

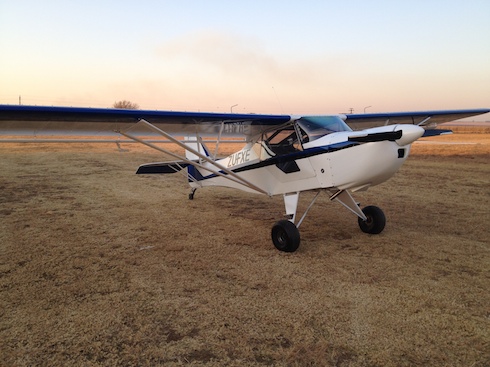

Up close 2.jpg

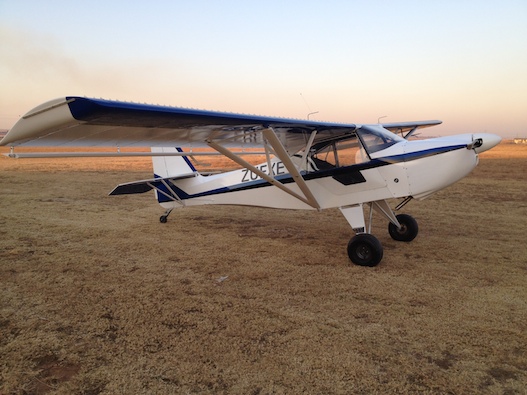

Front side.jpg
Front side.jpg (82.78 KiB) Viewed 3105 times
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
User avatar
JvTonder
Frequent Flyer
Frequent Flyer
Posts: 1322
Joined: Mon Sep 14, 2009 10:47 am
Location: Rhinopark

Re: Niek's BMW Explorer

Postby JvTonder » Thu Jun 26, 2014 6:59 am

Very nice! What does WOT stand for, brain freeze at the moment (**)
Flying feeds the soul!
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2770
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:

Re: Niek's BMW Explorer

Postby KFA » Thu Jun 26, 2014 7:08 am

WOT=Wide Open Throttle
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
User avatar
JvTonder
Frequent Flyer
Frequent Flyer
Posts: 1322
Joined: Mon Sep 14, 2009 10:47 am
Location: Rhinopark

Re: Niek's BMW Explorer

Postby JvTonder » Thu Jun 26, 2014 8:55 am

KFA wrote:WOT=Wide Open Throttle
Ahhhh dankie, en daar gaan die liggie aan! :oops: vhpy
Flying feeds the soul!
shiny new wings
Pre flight checks done
Posts: 31
Joined: Thu Apr 12, 2012 11:33 am

Re: Niek's BMW Explorer

Postby shiny new wings » Thu Jun 26, 2014 6:48 pm

I know a while back there was experimentation with the bmw 1200 motor. I heard there were problems with uneven cooling. Have these been sorted out? They are lovely motors on the bikes! Would be great to have an alternative to ratex for microlights
User avatar
Boet
Three Thousand
Three Thousand
Posts: 3748
Joined: Sun Jun 05, 2005 4:40 pm

Re: Niek's BMW Explorer

Postby Boet » Tue Jul 01, 2014 8:55 pm

WOT. Uh uh. BTTW! :oops:
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2770
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:

Re: Niek's BMW Explorer

Postby KFA » Tue Jul 01, 2014 8:59 pm

Die papierwerk weeg nog nie dieselfde as die vliegtuig se empty weight nie. Sal seker by Donderdag 'n papiertjie kry. Sukkel nog om Olie temp te gelees te kry en die EGT en CHT wil ook nie werk nie.
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
niek
Looking at the sky
Posts: 5
Joined: Tue Oct 02, 2012 2:02 pm

Re: Niek's BMW Explorer

Postby niek » Thu Aug 07, 2014 10:12 am

My arie is terug in sy hanger, maar ek kan hom nog nie vlieg nie - Die EGT's, CHT's en Oil temp werk nog steeds nie! Ou Stefan het hom toe op die ou end met meganiese meters gevlieg. Fout het met my begin - het alles op een CAN (low) laat werk en soos Stefan tereg opgemerk het -" as daar fout gaan met die (low) CAN, dan het ek geen instrumente nie!" Hy het toe vir my die instrumente geskei, maar om een of ander rede werk net die een CAN (selfs as jy hom omruil)
Ek ploeter nou met die problem - vermoed daar is 'n 'ground loop' of so iets! - Gelukkig het ek 'n bietjie tyd want die IVO CS prop (soos genoem in sy mail oor die specs), wat ek by hom gekoop het, het nog nie aangekom nie! (Soos ou Stefan noem - 'die ouens hou te lekker party by Oscosh!)
Wou vir julle 'n paar foto's aangeheg het maar weet nie hoe om dit in te paste nie!
Moet sê - ou Stefan en sy ouens werk dam netjies!! - wens ek kon die hele arie by hom laat bou het!
Groetnis tot ek geleer het om fotos te plak.
Niek
User avatar
Induna
Nothing beats flying
Nothing beats flying
Posts: 402
Joined: Tue Mar 20, 2012 10:00 am
Location: Port Owen - Western Cape

Re: Niek's BMW Explorer

Postby Induna » Thu Aug 07, 2014 11:11 am

Nick, watter EFIS gebruik jy? Ek neem aan MGL met n RDAC? As jy die opsie het, gebruik eerder die OPT+ en OPT- poorte. Ook, die CAN poorte moet albei gebruik word, CAN H en CAN L. dit sal nie werk as net een gebruik word. Die nadeel van die CAN poorte is dat jy BUS aan albei kante moet "terminate" met n 120ohm resister. Dit kompliseer net dinge.

Hoop jy kom reg.

Jacques
ZU-IIJ | Zenith CH650B Taildragger
ZU-RHT | Magni M18 Spartan
User avatar
Oupa-G
Pilot in Command
Pilot in Command
Posts: 883
Joined: Tue Apr 24, 2007 8:57 pm

Re: Niek's BMW Explorer

Postby Oupa-G » Fri Aug 08, 2014 9:27 pm

Mooi Niek sal wil hoor hoe dit gaan daardie engines is sweet as jy aandag gee aan die baffles en die olie verkoeler loophulle nie warm nie. Laat weet as die pampiere daar is. My nuwe projekkie is amper klaar.

Sterkte Oupa-G
niek
Looking at the sky
Posts: 5
Joined: Tue Oct 02, 2012 2:02 pm

Re: Niek's BMW Explorer

Postby niek » Tue Aug 12, 2014 12:03 pm

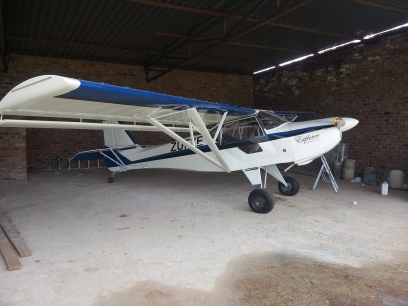

My arie voor hy na Stefan toe is.(As ek hom reg gespoeg en plak het - sal foto's neem soos hy nou lyk as die een gewerk het.) Ek het nou die EGT's aan die werk gekry en is nou besig met die CHT's en as die tips van Rainier Lamers werk gaan die CHT's ook binnekort werk! Dan lyk dit of ek dalk al die naweek sal kan vlieg!
Jacques - ek het "n iEFIS explorer en hy het nie OPT's nie - die een CAN met al die goed op het gewerk - maar Stefan was reg, ons gebruik nou altwee CAN's en hopelik werk alles binnekort.
