M24 Panel upgrade

Postby KFA » Fri Aug 16, 2013 10:20 pm

For those who might find it interesting I thought I would show a panel upgrade we are busy with on a M24 Orion. Flydat and some other instuments coming out to make way for a new Odyssey. Total weight about the same as before, give or take a couple of grams.
Attachments
Before M24.jpg

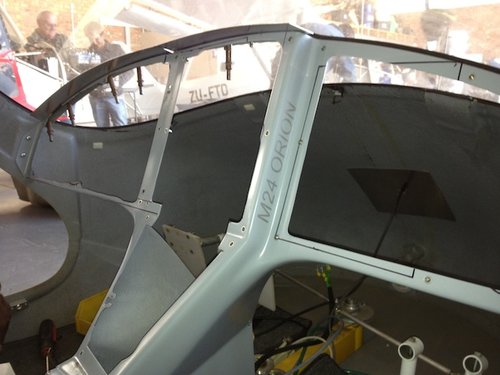

Not much left.jpg
Transformation 1.jpg
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
Top
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2789
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:
Contact KFA

Re: M24 Panel upgrade

Postby KFA » Fri Aug 16, 2013 10:25 pm

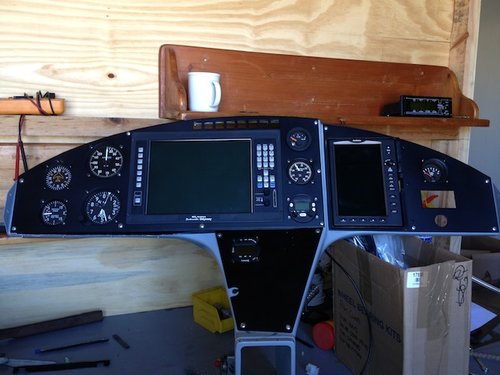

More progress. Should finish the panel part over the weekend and then re-install Monday.
Total time to do the installation is about 2-3 weeks. Give or take a couple of days.
Attachments
Getting there.jpg
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
Top
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2789
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:
Contact KFA

Re: M24 Panel upgrade

Postby KFA » Sat Aug 17, 2013 4:25 pm

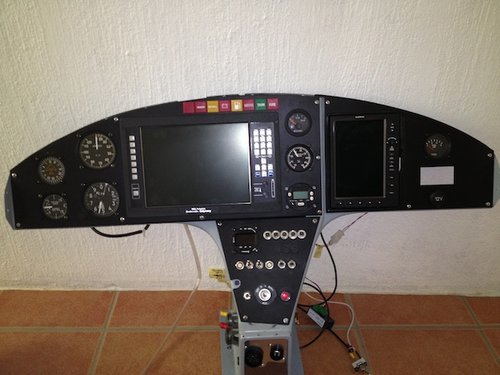

Nearly done. Last instrument to go in and EFIS connections
Attachments
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
Top
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2789
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:
Contact KFA

Re: M24 Panel upgrade

Postby KFA » Tue Aug 20, 2013 1:20 pm

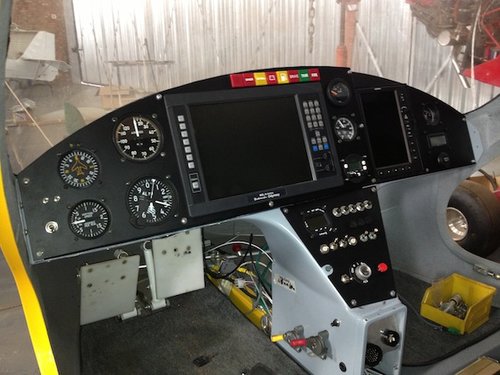

New panel being installed
Attachments
Panel back in.jpg
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
Top
User avatar
Orville
Pre flight checks done
Posts: 35
Joined: Thu May 26, 2005 9:43 am
Location: Vanderbijlpark

Re: M24 Panel upgrade

Postby Orville » Tue Aug 20, 2013 3:39 pm

Looks stunning!!!!!!!!!
What a great piece of work (^^) (^^)
Top
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2789
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:
Contact KFA

Re: M24 Panel upgrade

Postby KFA » Tue Aug 20, 2013 8:32 pm

Thanks Orville. vhpy
Luck-The moment when preparation meets opportunity.
"Whether you think you can or you think you can't, you're right." -Henry Ford
"Opportunity Is Missed By Most Because It Is Dressed in Overalls and Looks Like Work." - Thomas Alva Edison
BUSHPILOTS FLY TAILDRAGGERS
Failure is not the opposite of success, it is the stepping stone for success
Top
User avatar
lion
Solo cross country
Solo cross country
Posts: 133
Joined: Thu Nov 05, 2009 9:55 am
Location: Down here wishing I was up there..

Re: M24 Panel upgrade

Postby lion » Tue Aug 20, 2013 11:59 pm

Very nice! As someone who has re-made a number of panels, I am acutely aware of the difficulties and down to 1 mm tolerances! Well done! Had up to ten or more templates cut until everything fitted perfectly before having the final panel cut.....

What are the 'plates' on the rudder pedals?
Top
User avatar
KFA
Toooooo Thousand
Toooooo Thousand
Posts: 2789
Joined: Mon Jun 19, 2006 8:09 pm
Location: Now at Petit (FARA)
Contact:
Contact KFA

Re: M24 Panel upgrade

Postby KFA » Thu Aug 22, 2013 8:10 pm

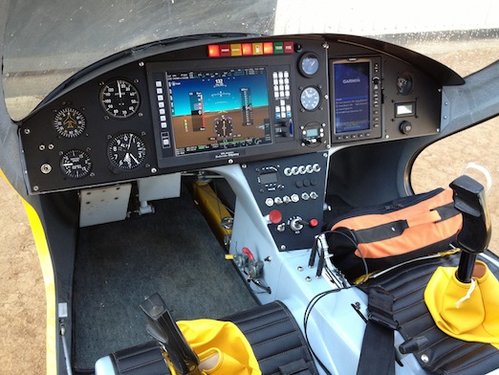

Thanks guys, Gawie took his baby home today and all went well.

Had up to ten or more templates cut until everything fitted perfectly before having the final panel cut.....

What are the 'plates' on the rudder pedals?
I was lucky on this one. We only had to redo the small panel in the center. The rest fit the first time. Those plates are just removeable rudder pedals.
