Icom A5 Plug

Postby avgas » Sun Jul 01, 2012 10:41 am

Hi
someone helped me before with a wiring diagram of the headset conector from the Icom A5 but I can not find it now. Anybody out there with some info.
I have a A5 with the wires coming from radio and would like to wire it to an intercom .
even if you could just tel identify the pionts on the headset plugs please
Thanks
Avgas
Real men don't have to kill a Rhino for a Horn
Balls to the wall
Top
HENNING JOHAN
Pilot in Command
Pilot in Command
Posts: 993
Joined: Sun May 10, 2009 5:29 pm
Location: Heidelberg Gauteng
Contact:
Contact HENNING JOHAN

Re: Icom A5 Plug

Postby HENNING JOHAN » Sun Jul 01, 2012 7:52 pm

avgas wrote:Hi
someone helped me before with a wiring diagram of the headset conector from the Icom A5 but I can not find it now. Anybody out there with some info.
I have a A5 with the wires coming from radio and would like to wire it to an intercom .
even if you could just tel identify the pionts on the headset plugs please
Thanks
Avgas
Ask Zulu of airmagic! :wink: (^^)
FLY SAFE!!FLYBOY OBD.Aerotrike Scout 503 ZU-CAI.
Top
SoLo
Woohoo 100 posts - flying high
Woohoo 100 posts - flying high
Posts: 111
Joined: Wed Jun 20, 2007 3:55 pm
Location: Cape Town

Re: Icom A5 Plug

Postby SoLo » Mon Jul 02, 2012 10:24 am

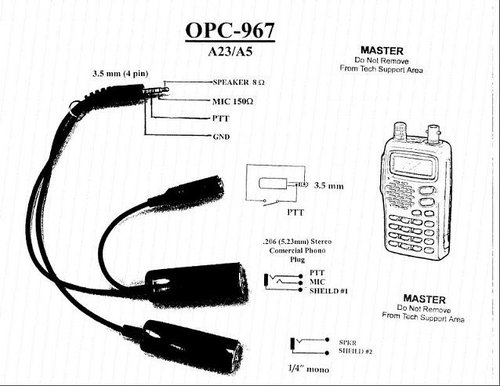

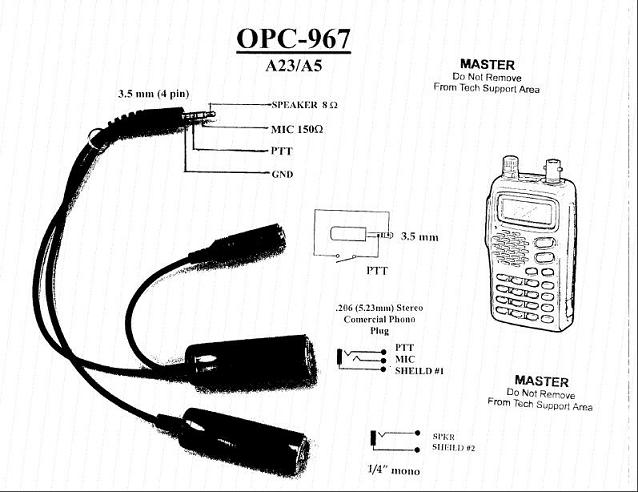

See attachment :wink:
