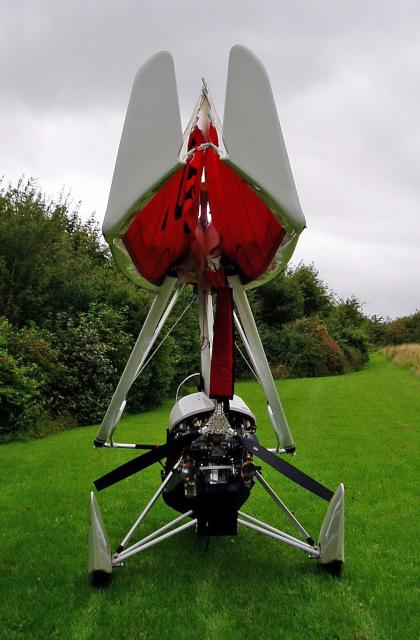

The wing can also now be folded without removal from the trike. Less hangar space needed!!
The topless QuikR is the fastest and most advanced weightshift today with a 100MPH cruise and slow 40MPH stall. With a 450kg maximum takeoff weight and tested to +6 and -3gm the wing has been rig tested for pitch stability. The quick rig and de-rig facility helps to use as little hangar space as possible and in as little as 5 minutes. The QuikR complies with BCAR Section S issue 4 which is the toughest airworthiness standard in the world.
The QuikR is a no-nonsense high-speed touring aircraft ideal for eating up the miles with a hands-off trim range of 65MPH - 100MPH using the unique electric trimmer as first used on the original Quik. Now with a strut-braced topless wing, distinctive winglets, and slightly increased wing area of 11.43 Sq m.
The Quik just got quicker!
Performance Data
Wing
Max level speed 105mph (170km/h)
VNE 120mph (193km/h)
Trim Speed - Max AUW 65-95mph
Trim Speed - Min AUW 55-100mph
Climb rate @ MTOW
912s
1150ft/min
Stall speed @ MTOW 40mph (64km/h)
Take off to 15m, MTOW
912s
274m
Landing dist from 15m,MTOW 211m
Ultimate strength +6g, -3g
Manoeuvre loads +4g, -0g
Wing Span 8.45m
Wing Area 11.43sqm
Rate of Descent 500 ft/min

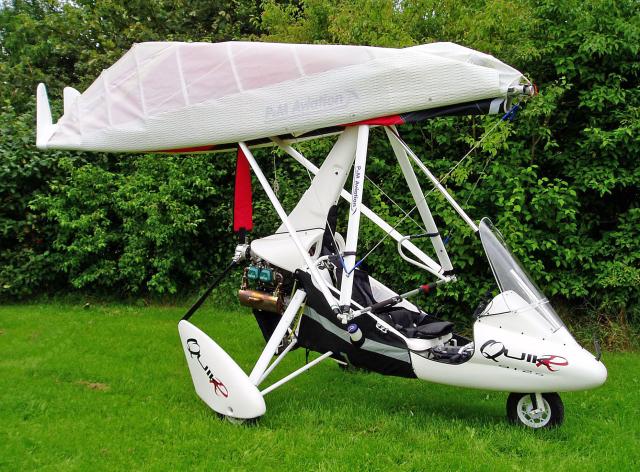

- QuikR.JPG (97.83 KiB) Viewed 4563 times
